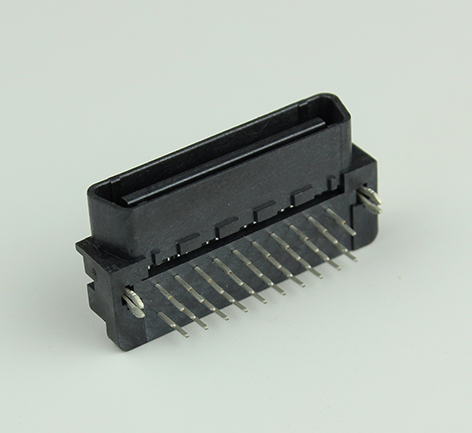

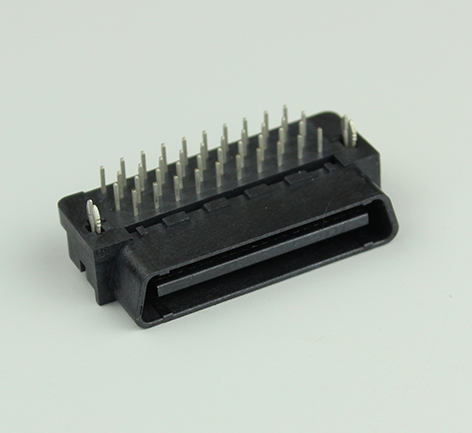

Zt01sg series

?ZTEC 內部編號 ZT01-SG020R/A

Ztec internal number: zt01-sg020r / A

?可替代TE 內部產品：

Alternative to te internal products:

?PCB 連接器組件類型?: PCB 安裝接頭

PCB connector assembly type: PCB mounting connector

?PCB 安裝方向?: 直角

PCB installation direction: right angle

?連接器系統?: 板對板

Connector system: board to board

?Number of Positions?: 20

?Number of Positions?: 20

?中心線（間距）?: 1.27?mm?[?.05?in?]

Center line (spacing): 1.27 mm [0.05 in]

產品類型特性

Product type characteristics

?PCB 連接器組件類型?: PCB 安裝接頭

PCB connector assembly type: PCB mounting connector

?連接器系統?: 板對板

Connector system: board to board

?接頭類型?: 帶罩

Type of joint: with cover

?Sealable?: 否

· sealable ? no

?連接器和端子端接到?: 印刷電路板

Connector and terminal termination: printed circuit board

結構特性

Structural characteristics

?可堆疊?: 否

Stackable: no

?行數?: 1

Number of rows: 1

?PCB 安裝方向?: 直角

PCB installation direction: right angle

?Number of Positions?: 40

?Number of Positions?: 40

?

Qualification

電氣特征

Electrical characteristics

?Operating Voltage?(VAC): 250

?Operating Voltage?(VAC): 250

?絕緣電阻?(MΩ): 1

Insulation resistance ? (m Ω): 1

主體特性

Subject characteristics

?連接器外形?: 標準

Connector shape: Standard

?PCB 保持特性電鍍材料?: 鎳打底鍍錫

PCB retention characteristics electroplating materials: nickel backing tin plating

?PCB 保持特性材料?: 黃銅

PCB retention material: Brass

接觸件特性

Contact characteristics

?端子基材?: 磷青銅

Terminal base material: phosphor bronze

?PCB 端子端接區域電鍍材料?: 錫

PCB terminal termination area electroplating material: Tin

?端子底板材料?: 鎳

Terminal base plate material: Nickel

?端子形狀和構造?: 單叉

Terminal shape and construction: single fork

?PCB 端子端接區域電鍍材料厚度?: 1?μm?[?39.4?μin?]

Thickness of electroplating material in PCB terminal termination area: 1 μ m [39.4 μ in]

?端子接觸部電鍍材料?: 金

Electroplating material of terminal contact part: Gold

?端子接合區域電鍍材料厚度?: .5?μm?[?19.7?μin?]

Thickness of electroplating material in terminal joint area: ? m ? [? 19.7 ? in ?]

?端子類型?: 公端

Terminal type: Male

?端子額定電流（最大值）?(A): 1

Terminal rated current (maximum) ? (a): 1

?端子接觸部長度?: 6.6?mm?[?.259?in?]

Contact length of terminal: 6.6 mm [0.259 in]

?端子布局?: 直插式

Terminal layout: in-line

端接特性

Termination characteristics

?端接柱體和尾部長度?: 3.1?mm?[?.122?in?]

3.1 ? mm ? [? 122 ? in ?]

?PCB 端接方法?: 通孔 - 焊接

PCB termination method: through hole welding

機械附件

Mechanical accessories

?PCB 安裝固定類型?: 固定支腳

Fixed type of PCB installation ?: fixed feet

?接合對準?: 帶有

· joint alignment ? with

?接合對準類型?: 極化, 極化

· joint alignment type ?: polarization, polarization

?PCB 安裝固定?: 帶有

PCB installation and fixation: with

?PCB 安裝對準?: 不帶

Assembly alignment of PCB: without

?連接器安裝類型?: 板安裝

Connector mounting type ?: board mounting

使用環境

Usage environment

?工作溫度范圍?: -55 – 85?°C?[?-67 – 185?°F?]

Operating temperature range: - 55 – 85 ? C ? [? - 67 – 185 ? f ?]
